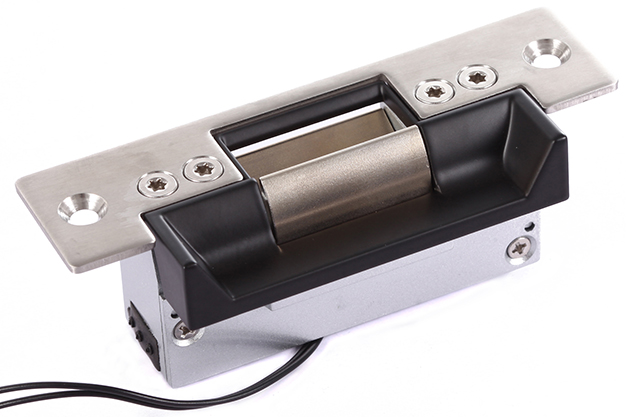

This electric strikes with 4-27/32" faceplates are designed for use with mortise or cylindrical type lockset with up to 3/4" latch bolt projection without deadbolt. The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.

• Case Dimensions (LxWxD): 3-23/64"x1"x1-9/16"

• Faceplate Dimensions (LxW): 4-27/32"x1-1/4"

• Strike Opening (LxWxD): 1-7/16"x5/8"x21/32"

• Latchbolt Projection: 3/4"

• Face Plate Material: 304 stainless steel force structure

• Lock Material: Zinc alloy (baking varnish by high temperature)

• Holding Force: 2200lbs

• Working Voltage: 12VDC

• Current: 320mA

• Suitable For: Wooden door, metal door, PVC door

• Surface Temperature: Within 68℉

• Suitable Temperature: 14℉~131℉

• Operating Humidity: 0~90%(non-condensing)

• Face plate Housing: Painted Steel

• Lock tongue: Surface by coating nickel

• Function: Built-out MOV

• Weight: 0.75lb
