HBK-V01 Video Intercom

HBK-V01 Video Intercom 产品中心

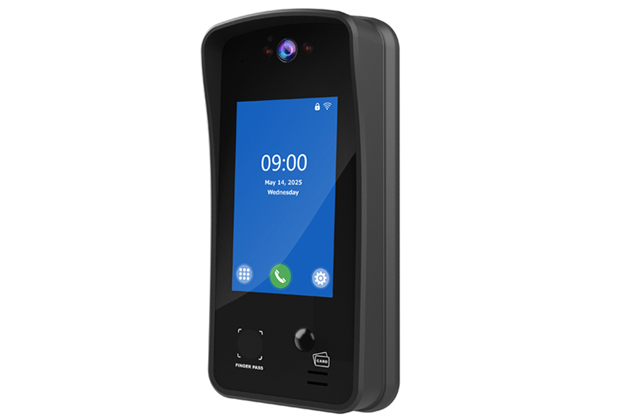

HBK- V01图.jpg

HBK-V01 video intercom adopts a 5-inch touch screen display and built in Tuya module, enabling viewing, calling and unlocking remotely from the smartphone. Supports two-way audio for real-time communication with visitors in front of the door. Built in PIR motion sensor, and can get alerts when motion is detected or someone presses video doorbell.

Optical under-display fingerprint recognition solution is not afraid of static electricity and the recognition speed is less than 0.5 seconds. Integrated full screen design, simple and stylish, fearless of oily and wet fingers. Conforms to IP65 waterproof rating, not afraid of damp and low temperature environments.

  • Model: HBK-V01

  • Dimensions (LxWxH): 224.8x107.5x44.6mm

  • Camera: 200W (1080P)

  • Video Coding: H.264

  • Current: <800mA

  • Display: 5" (800x480)

  • Infrared Night Vision: IRCUT

  • Vertical imaging: Support

  • PIR Scope: 5m（H:120° V:100°）

  • Waterproof Level: IP65

  • Card Type: ID card

  • Card Frequency: 125KHz

  • WiFi Standard: 2412-2462MHz

  • User Capacity: 2000 cards, 500 codes, 50 fingerprints

  • Door Open Mode: Fingerprint/Card/Code/Mobile APP

  • Enclosure Material: Plastic

  • Panel Material: Tempered glass

  • Operating Temperature: -22℉-140℉

  • Operating Humidity: 10%–90%RH
