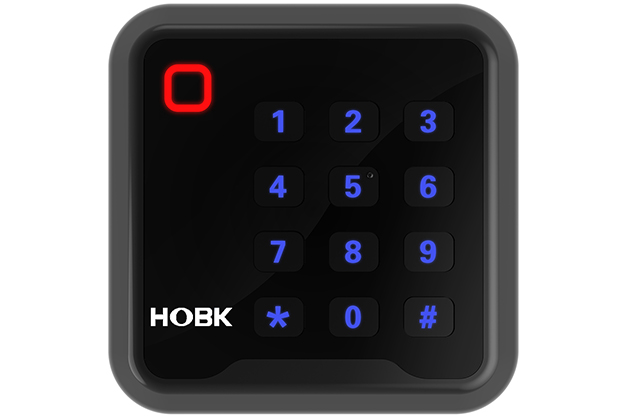

Wiegand proximity reader is mainly used for data acquisition. This device adopts high performance card reading module and efficient microprocessor, and it supports standard wiegand 26bits or wiegand 34bits output format, with a characteristic of high receiving sensitivity and low working current. It is suitable for various RF applications, such as, building, hotel, community, parking lot, etc.

• Operating Voltage: DC12V

• Static Current: ≤50mA

• Card Type: ID card or IC card

• Card Frequency: 125KHz or 13.56MHz

• Output Format: Wiegand 26/34

• IP Rating: Waterproof IP66

• Reading Distance: Max. 2-23/64" (related to card type and working environment)

• Operating Temperature: -22℉~140℉

• Operating Humidity: 10%–90%RH

• Enclosure Material: ABS

• Panel Material: PC

• Dimensions: 3-25/64"x3-25/64"x45/64"

• Product Weight: 5.11oz

HBK-D02K User Manual.pdf
