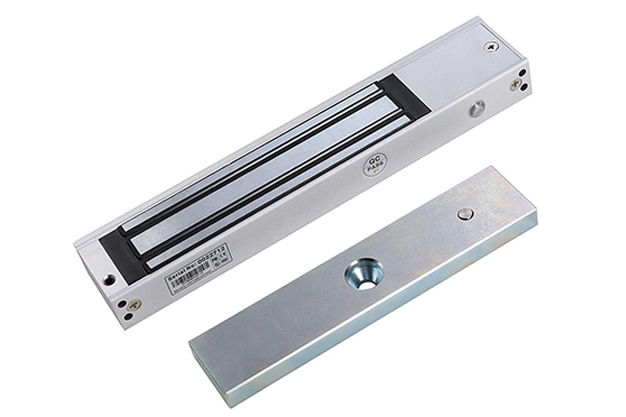

HBK-280N is a 280kg holding force electromagnetic lock for glass door, wooden door, fire door, metal doors, etc. The electromagnetic lock is designed by using the principle of electricity-generated magnetism. When the current passes through the silicon steel sheet, the electromagnetic lock will produce a strong suction force to tightly suck the armature plate to lock the door. With LED indicator, it can show the working status of electromagnetic lock.

• Operating Voltage: 12VDC or 24VDC (adjustable)

• Operating Current: 12V/500mA or 24V/250mA

• Signal Output: Lock Signal (NO/NC/COM)

• LED: Red shows locked; Green shows unlocked

• Surface Temperature: ≤122℉


• Operating Temperature: -4℉~131℉

• Operating Humidity: 0%–90%RH

• Holding Force: 280kg

• Lock Body Dimensions: 9-27/32"x1-59/64"x1-7/64"

• Armature Plate Dimensions: 7-3/32"x1-17/32"x33/64"

• Product Weight: 4.1lbs
