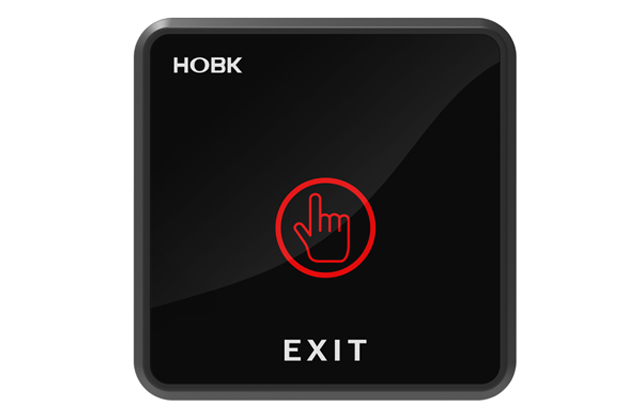

HBK-E02 touch exit button supports 0-15s time delay. The PC panel and special bottom box for easy installation in a varietyof situations. And it is suitable for use in buildings, residential communities, offices, hotels, hospitals, sports venues, and other places.

• Dimensions: 3-25/64"x3-25/64"x1-13/32" (86x86x35.9mm)

• Input Voltage: 12VDC

• Operating Current: ≤60mA


• Output Contact: NO/NC/COM

• Mechanical Life: 500,000 tests

• Time Delay: 0-15s (adjustable)

• LED Indicator: Red---Standby; Green---Operation

• Operating Temperature: 22℉~140℉ (-30℃~ 60℃)


• Suitable Humidity: 0~95% (relative humidity)

• Eclosure Material: Plastic

• Panel Material: PC

• Product Weight: 5.22oz (148g)

HBK-E02 User Manual.pdf
